SmartSoft-VP 3.3.0 for Windows 10

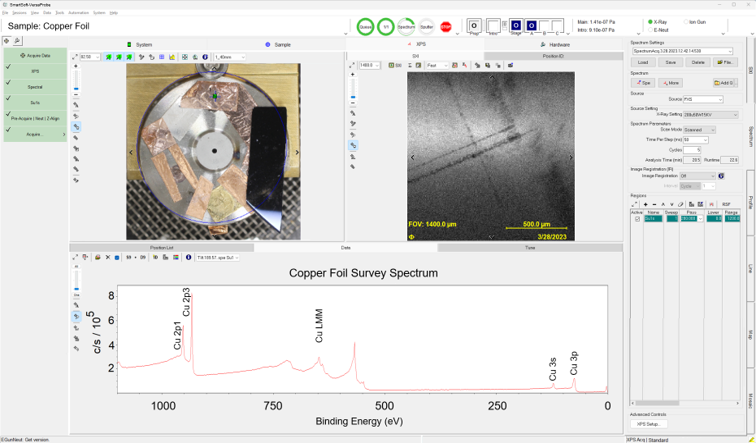

SmartSoft-VP 3.3.0 is the latest Windows 10 release of PHI’s software for VersaProbe II, III, Hybrid, and 4. It includes an improved queue editor for enhanced control and flexibility of automated date acquisition and a new sidebar dashboard supporting all options including LEIPS, UPS, and REELS. New software features include large-area mosaic mapping of SXI and photoelectron maps, a faster Z-align, an improved algorithm for detector channel signature removal in the snapshot mode, and dual beam (electrons and ions) charge neutralization for the Auger option. It also includes the ability to enable SEE (System Evaluation Environment), a new service utility built into SmartSoft which periodically records all system parameters while SmartSoft is running. SEE can be extremely helpful in diagnosing system hardware issues and minimizing instrument downtime.

Advanced Queue:

  • Create automated analysis queues combining surveys, high-res scans, depth profiles, maps, and more!
  • View and modify existing queue items while the queue is running.
  • Easily enable features like Z-align, pre-sputter, and use of neutralization in the queue.
  • Setup advanced experiments with queue tools such as loops, pauses, system pressure setpoints, and more!
  • Use MORE function to continue acquisition of spectra maps for improved signal-to-noise and depth profiles for reaching deeper layers.
  • Use and schedule service tasks for outgassing, startup and shutdown sequences.
  • Tasks can be copied and pasted, or entire queues can be saved, loaded, and modified for routine repeated analysis.
  • Queue validation feature allows user to identify and correct possible errors before starting the queue.

SmartSoft Flyer
