XPS Reveals the Active Surface Chemistry Behind a High-Performance Polymer for Water Purification

Surface Analysis Spotlight: XPS

	by Sanchita Chakrabarty Technical Sales

Key Takeaways

• Researchers developed a novel imidazole-functionalized PTBr membrane capable of simultaneously removing nitrate ions and methyl orange dye from water.
• XPS confirmed successful membrane activation by verifying bromide ion removal and exposure of active imidazole adsorption sites on the polymer surface.
• High-resolution XPS analysis identified characteristic C 1s and N 1s signatures of accessible imidazole groups, confirming the surface chemistry responsible for adsorption.
• The membrane achieved efficient contaminant removal through a combination of electrostatic attraction, π-π interactions, and diffusion-controlled adsorption mechanisms.
• PTBr demonstrated strong co-adsorption performance, selectivity, and reusability, highlighting its potential for practical wastewater treatment applications involving both inorganic and organic pollutants.

Nitrate ions and azo dyes, such as methyl orange, are persistent and toxic pollutants originating primarily from agricultural fertilizers, sewage, and industrial wastewater, especially from the textile sector. Their removal from water is challenging due to their high solubility. Conventional treatment methods—such as biological denitrification, reverse osmosis, and ion exchange—often face limitations related to operational cost, efficiency, and the generation of secondary waste. In contrast, adsorption using advanced polymeric materials offers a promising, efficient, and sustainable approach for simultaneously removing both inorganic and organic anions from contaminated water.

This recent study by Simona Crispi et al. introduces a novel quaternized pentablock copolymer (PTBr) film for the adsorption-based removal of nitrate ions and methyl orange (MO) dye from water. The brominated copolymer is quarternized with 1-methylimidazole to confer on it a hydrophilic character. The PTBr membrane, functionalized with imidazole groups, demonstrates high efficiency in removing both inorganic and organic anionic contaminants. The researchers investigated the membrane’s morphological, chemical, and thermal properties, and explored adsorption kinetics and isotherms for single and mixed contaminant solutions. Kinetic modeling reveals that surface interactions and diffusion mechanisms govern the adsorption process.

XPS confirmed bromide removal from the PTBr film by measuring the intensity of the bromine (Br 3d) peaks in the spectra relative to other elements before and after washing the polymer film. The study found that the bromine to carbon ratio decreased dramatically from 0.205 in the untreated PTBr to 0.0195 in the washed w-PTBr, indicating a substantial loss of bromine from the surface after washing. In addition, the bromine to nitrogen ratio dropped from 1.405 to 0.207, further supporting bromide removal.  These quantitative changes in elemental ratios, along with the reduced Br 3d peak intensity, provide direct evidence that the washing process effectively eliminated bromide ions from the polymer surface, leaving the imidazole groups exposed for adsorption.

XPS was used to analyze the surface chemical composition of the pentablock copolymer membrane (PTBr) before and after a washing step through analysis of the C1s and N1s peaks. XPS confirmed the presence of free imidazole groups on the polymer surface. Removal of bromide ions from the film surface after washing, was observed by XPS, ensuring that the imidazole group active sites are available for adsorption. After washing, the XPS spectrum of the polymer shows a new C1s peak at 286.1 eV, which corresponds to C–N bonds characteristic of imidazole rings. In the N1s region, additional peaks appear at 398.3 eV (R=N–C), 399.7 eV (NH of amine), and 401.2 eV (NH₄⁺), all associated with nitrogen atoms in imidazole structures. The increased intensity and presence of these peaks after bromide removal directly confirm that imidazole groups are exposed and available on the polymer surface.

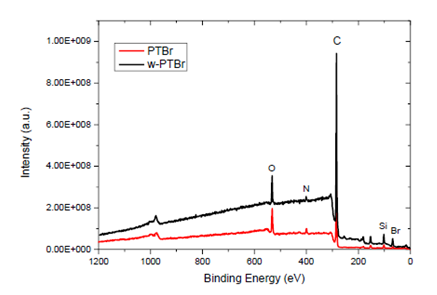

Figure 1: Survey spectra of PTBr film before and after the washing treatment.

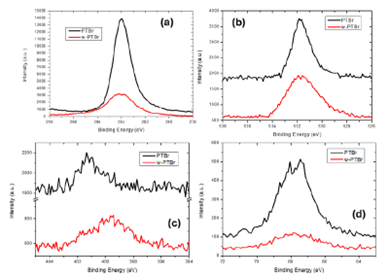

Figure 2. C1s (a), O1s (b), N1s (c) and Br3d (d) XPS spectra acquired on PTBr film before and after the washing treatment.

The membrane’s imidazole functionalization imparts positive charge and hydrophilicity, enabling strong electrostatic and π-π interactions with anions. When both contaminants were present, PTBr co-adsorbed nitrate and MO, though nitrate uptake was slightly reduced due to competitive effects, while MO removal remained robust, likely due to additional π-π interactions. In these mixed systems, intraparticle diffusion became more significant. PTBr achieves high removal efficiencies for both species, with only minor competitive effects in mixed contaminant systems. Kinetic and isotherm analyses reveal that adsorption is governed by rapid surface interactions followed by intraparticle diffusion, and the membrane’s performance is comparable to other advanced adsorbents.

Comparative analysis showed PTBr’s adsorption capacity is on par with other advanced adsorbents, and its selectivity and stability make it promising for real-world water treatment. Mechanistically, the imidazole groups impart positive charge and hydrophilicity, enabling strong interactions with anions and facilitating rapid surface binding followed by slower diffusion. The study highlights PTBr’s efficiency, reusability, and selectivity, and provides valuable kinetic and isotherm modeling insights for scaling up to practical applications.

X-ray Photoelectron Spectroscopy (XPS) played a crucial role in this study by confirming the chemical composition and functionalization of the polymeric adsorbent. It enabled precise identification of active sites, such as imidazole groups, and verified the removal of bromide ions after washing. XPS data provided essential insights into the surface properties that govern adsorption efficiency. Overall, XPS was indispensable for validating the material’s suitability for effective water purification.
